Top product characteristics
- Largest filter dimension for ponds up to 530 m³ (100 m³ for koi ponds)

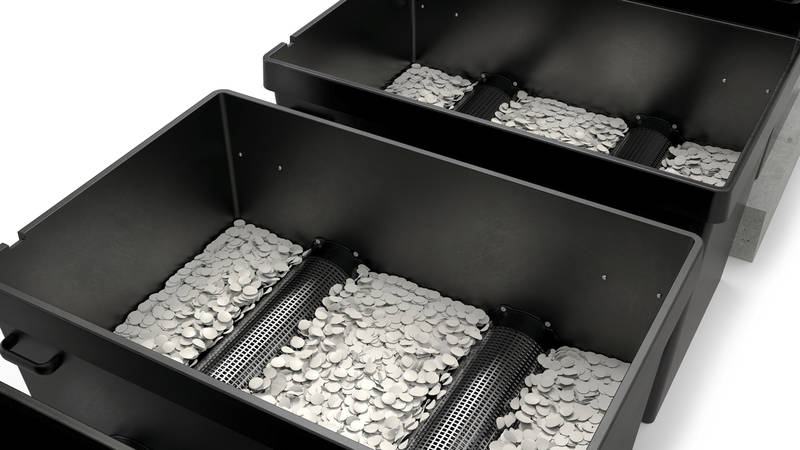

- XL Moving Beds for even higher levels of pollutant degradation
- Size-optimised pump chambers — suitable for AquaMax Eco Titanium and Expert filter pumps as well as the new Bitron Premium series
Product characteristics
- Mature, professional technology with more than three years of development time
- Highly effective decomposition of pollutants and nutrients thanks to professional filter media in the fluidised bed process
- Incl. 60 litres OASE PondPads
- Alternatively with 100 liters Hel-X available. (Item no .: 76557)
- Innovative and reliable product »Made in Germany«
- Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
- Available from March 2020
Technical data
Dimensions (L x W x H) | mm | 1330 x 875 x 820 |
---|---|---|
Net weight | kg | 101.60 |
Guarantee (+ request guarantee) <span class="CBPRINT"><span class="sternhochgestellt">*</span></span> | Years | 2 + 1 |
Biological filter surface | m² | 5000.0 |
Biological filter surface protected | m² | 300.0 |
Material | GRP Duroplast | |
Number of inlets | Units | 2 |
Inlet connections | mm | 180 |
Number of outlets | Units | 2 |
Outlet connections | 180 mm | |
Sludge discharge connections | DN 75 | |
Min. flow rate | l/h | 25000 |
Max. flow rate | l/h | 66000 |
Connection to | AquaOxy 4800, ProfiClear Premium DF-XL pump-fed EGC , ProfiClear Premium DF-XL gravity , ProfiClear Premium XL pump-fed drain module, ProfiClear Premium XL gravity-fed drain module | |
Installation height above water level | cm | 8.5 |
Type of use | Gravity fed system, Pump fed system | |
Other | Aeration pre-installed Pollutant discharge incl. slide valve |
|
Item number | 73367 | |
EAN | 4010052733678 |
